Geo-Seal Vapor Intrusion Barrier System

Over 10 years of Proven On Grade Solution For performance for Contaminant vapor intrusion protection

Geo-Seal®: Over 10 years of proven performance for Contaminant vapor intrusion protection.

Geo-Seal® is EPRO’s innovative sub-slab vapor intrusion barrier system designed to eliminate vapor intrusion for brownfields or any environmentally-impaired site.

Installed between the foundation slab of the building and the soil pad, triple-layered Geo-Seal eliminates vapor intrusion pathways and stops contaminant vapors from permeating through the slab and into a building.

Fully tested and proven highly effective against VOC vapor such as chlorinated solvents and petroleum hydrocarbons, as well as methane gas, Geo-Seal earns wide approval among various regulatory agencies across the country.

With over 10 years proven success and well in excess of 50 million square feet of products installed, Geo-Seal provides , owners and developers piecepeace of mind knowing thatensure a healthy indoor environment will keep occupants safe while also significantly reducing remediation costs and speeding site construction.

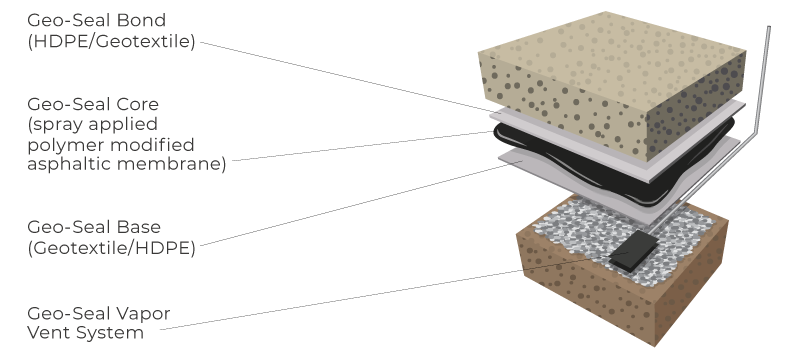

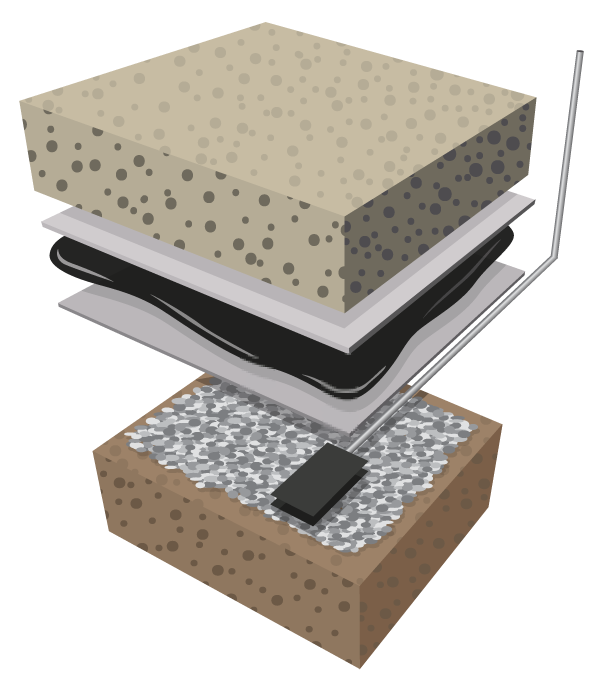

Geo-Seal component overlay illustration.

Geo-Seal Base

Geo-Seal BASE is a geocomposite base layer. It installs with the geotextile surface facing down and the gray HDPE layer facing the installer. Geo-Seal CORE is applied directly to the HDPE side of BASE. BASE provides the ultimate substrate and enables the CORE layer to be free of shadowing and pinholes.

Geo-Seal Core

Geo-Seal CORE, a 60 mil membrane, is sprayed applied to BASE, sealing around penetrations and BASE seams.

Geo-Seal Bond

A protection layer, Geo-Seal BOND is placed over the Geo-Seal uncured CORE layer to enhance the curing of CORE provide addition vapor intrusion protection and for increased puncture resistance.

Geo-Seal Vapor-Vent

Low profile Geo-Seal Vapor-Vent soil gas collection system eliminates the need for trenching, is more cost-effective than pipe and gravel systems, and helps speed installation of the Geo-Seal system. Incorporating Vapor-Vent provides maximum protection against contaminated vapor and eliminates long-term costs when configured as a passive system.

Geo-Seal Resource Library

Geo-Seal
System Geo-Seal
Geo-Seal
SPECIFICATION.2019.Geo-Seal
Geo-Seal
SPECIFICATION.2019.Vapor-Vent
Geo-Seal
Geo-Seal BASE
Geo-Seal
Geo-Seal BOND
Geo-Seal
Geo-Seal BOND B
Geo-Seal
Geo-Seal Core
Geo-Seal
Geo-Seal FILM 11
Geo-Seal
Geo-Seal FILM 16
Geo-Seal
Geo-Seal FILM 5
Geo-Seal
Geo-Seal Vapor Vent
Geo-Seal
SDS Geo-Seal BASE
Geo-Seal
SDS Geo-Seal BOND
Geo-Seal
SDS Geo-Seal CORE
Geo-Seal
SDS Geo-Seal DETAIL
Geo-Seal
SDS Geo-Seal FILM 11
Geo-Seal
SDS Geo-Seal FILM 16
Geo-Seal
SDS Geo-Seal FILM 5
Geo-Seal
SDS Vapor-Vent
Geo-Seal
Geo-Seal System Sheet
Geo-Seal
40.100.1 GEO-SEAL UNDERSLAB ASSEMBLY
Geo-Seal
40.110.4 GEO-SEAL BASE OVERLAP
Geo-Seal
40.120.1 GEO-SEAL UNDERSLAB PIPE PENETRATION
Geo-Seal
40.121.1 UNDERSLAB PRECAST PILE PENETRATION
Geo-Seal
40.123.1 UNDERSLAB H-PILE PENETRATION
Geo-Seal
40.125.2 UNDERSLAB PIPE HANGER PENETRATION
Geo-Seal
40.131.1 VERTICAL TERMINATION
Geo-Seal
40.132.1 UNDERSLAB GEO-SEAL PERIMETER FOOTING TERMINATION
Geo-Seal
40.132.2 UNDERSLAB GEO-SEAL PERIMETER FOOTING 6INCH TERMINATION
Geo-Seal
40.141.1 UNDERSLAB CONSTRUCTION JOINT - STEP ONE
Geo-Seal
40.141.2 UNDERSLAB CONSTRUCTION JOINT - STEP TWO
Geo-Seal
40.170.1 UNDERSLAB ASSEMBLY REPAIR
Geo-Seal
40.180.2 ELEVATOR PIT DETAIL
Geo-Seal
40.181.1.18 E.PROTECT ELEVATOR PIT ASSEMBLY TRANSITION TO GEO-SEAL
Geo-Seal
40.190.1 UNDERSLAB GEO-SEAL @ PIPE PENETRATION
Geo-Seal
40.190.3 UNDERSLAB GEO-SEAL AT VENT RISER
Geo-Seal
40.190.4 UNDERSLAB VAPOR-VENT @ FOOTING
Geo-Seal
40.191.2 UNDERSLAB VAPOR-VENT THROUGH FOOTING
Geo-Seal
40.900.1 UNDERSLAB PIPE PENETRATION SEQUENCE
Geo-Seal
40.901.1 UNDERSLAB TERMINATION @ PERIMETER FOOTING SEQUENCE
Geo-Seal
40.902.1 UNDERSLAB TERMINATION @ WALL SEQUENCE



Geo-Seal: Triple-Layered Composite Construction for Unmatched Protection

Geo-Seal provides a perfect blend of constructibility and chemical resistance owing to its triple-layered composite design.

Dual Chemical Resistant Layers

The Geo-Seal Base and Bond layers are composed of a high-density polyethylene (HDPE) material bonded to a geotextile. HDPE is renowned for its chemical resistance, high tensile strength, excellent stress-crack resistance, and its highly reliable subsurface containment longevity.

Sealed to Perfection

The Geo-Seal Core layer is composed of a unique, elastic co-polymer modified asphaltic (PMA) membrane called e-spray and provides additional protection against vapor transmission. This layer creates a highly-effective seal around slab penetrations and eliminates the need for mechanical fastening at termination points, but also helps increase the overall tensile strength of the system. .

Geo-Seal Base and Bond, combined with Geo-Seal Core membrane, form a barrier resistant to the most concentrated chemical pollutant vapors.

Construction Friendly

The reduced curing time of Geo-Seal Core and the ability to apply it in cooler temperatures ensures quick installation of the system, minimizing impact on construction schedules.

Superior Puncture Resistance

Geo-Seal forms a highly puncture resistant barrier that greatly reduces the chance of damage occurring after installation and prior to the placement of concrete.

Vapor Removal

Geo-Seal Vapor-Vent soil gas collection system can be used in conjunction with Geo-Seal to alleviate the buildup of vapors beneath structures as a result of vapor barrier implementation. Vapor-Vent can be used as an active or passive ventilation system depending on the requirements of the design engineer.

Certified Applicator Network

The application of Geo-Seal and Vapor-Vent can be performed by any one of the Geo-Seal Certified applicators throughout the country.

Service and Support

EPRO representatives are available to provide job and site-specific assistance. A local representative can ensure Geo-Seal and Vapor-Vent is installed according to specification.

No single material should ever be relied upon to effectively waterproof a building or protect it from ground contamination. Rely on EPRO to ensure that your building remains dry and safe.

Submit your site conditions today and simplify the process with a no obligation assessment and recommendation from EPRO or Find a Local Rep in your area.
